Imagine being tasked with replacing a 30-year-old meter with little expertise on the product or how it’s wired. In addition to wiring, you will have to make mechanical considerations for installing a new meter that doesn’t fit within the panel cutout. There’s no guarantee you will be able to find the original drawings which have to be revised for a new meter. AMETEK Power Instruments can ease those troubles of replacing old legacy meters with our JEMStar II High Accuracy Revenue Meter retrofit.

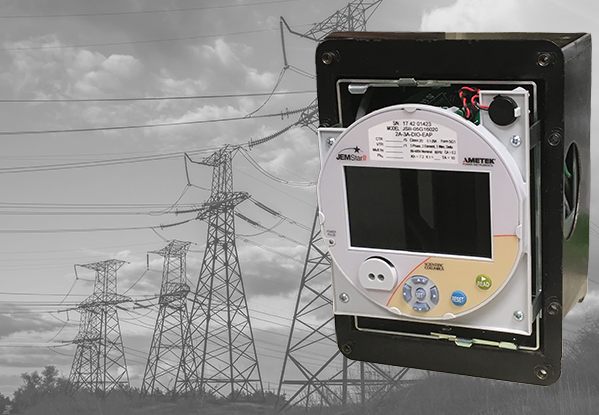

We designed our JEMStar II High Accuracy Revenue Meter to fit into the existing meter enclosure (short or tall) and connect to the wiring for a plug and play replacement option. This takes the hassle and worry out of rewiring, drawing changes and mounting issues.

Available JEMStar II Retrofits

  • SCI JEM2, JEM10, JEMStar
  • GE DS63, DSW63, DS64, DSW64
  • Quantum Q121, Q220
  • TransData MarkV
  • L&G Quad4
  • Westinghouse D2B, D4B
In all retrofits, we duplicate the exact features that were available in the previous models, like the circuit connections (voltage/current), I/O and Communications. This allows you to keep existing wiring and engineering drawings since it will remain the same. Our custom design mounts flush to the meter’s enclosure so it doesn’t protrude out from the front. We can take your integration a step further and add new features that were not available in the previous model, like Internal Modem, Ethernet and IRIG-B. We add these new features into either existing terminals and connectors or by adding a cable.

Not only do you save money using our retrofit, but it also includes many advanced features that were not available at the time. Upgrading to a retrofit JEMStar II will improve your accuracy to a guaranteed 0.05% for 10 years. In addition to better accuracy, you will have more communication and I/O options, power quality features, NERC CIP security and more data measurements and storage.

Utilizing our retrofit plug and play gives you modern features while saving you over $1,000 per site in commissioning costs. Take a look at our retrofit in comparison to a meter1:

Installation Process

AMETEK Power Instruments Meter Retrofit

New Meter Installation

Hours

Details

Hours

Details

  1. Engineering

0

No wiring changes required

8

Update drawings

  1. Disconnect Power

0

Can replace with power ‘On’

1

Lockout/Tagout

  1. Remove Existing Meter Wiring

0

Existing wiring remains in place on existing enclosure

1

Label and tag wires

  1. Remove Meter

0

Slide meter out of enclosure

1

Remove meter and enclosure

  1. Modify Panel Cutout for New Meter

0

Not required since we use the existing meter enclosure

8

Install filler plate or modify cutout

  1. Install New Meter

0

Slide new meter into existing enclosure

1

Install new meter enclosure

  1. Re-Connect Meter Wiring

0

We use the existing meter wires

1

Rewire meter

  1. Power Up Meter and Test

1

Power up meter

2

Test wiring and power up meter

Total Hours

1

23

Labor Rate ($/hour)

$50.00

$50.00

Total Cost

$50.00

$1,150.00

$1,100.00 in Savings from Utilizing a JEMStar II Retrofit

1The hours and prices reflected in this chart are based on average estimates and do not reflect exact hours or costs.

Ready to replace that legacy meter? View our retrofits data sheet to learn more or contact us to discuss your retrofit options.
